產品特性：

THS1安裝和調試手冊（點擊下載手冊）

THS1-2000Z測試報告（點擊查看）

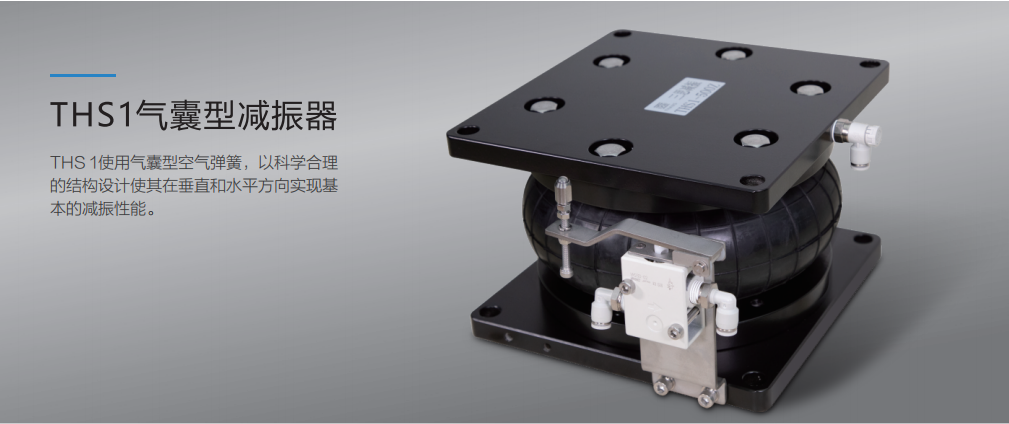

THS1氣囊型減振器使用氣囊型空氣彈簧，以科學合理的設計使其在垂直和水平方向?qū)崿F(xiàn)基本的減振性能。

THS1 series is a basic pneumatic vibration isolator with bellows air springs,which is simple in design and provide basic isolation performance in both horizontal and vertical at low cost .




產品結構說明：

THS1氣囊型減振器使用耐用性極強的氣囊型空氣彈簧，使用壽命長，重量輕。

如需要較高的重復性精密，可將精密（土0.05mm)調平閥安置在減振器上，縮短設備的穩定時間，保證平臺的水平性，也可使用普通平閥（精度土0.1mm）。

THS1減振器上裝有內置型油阻尼, 搭載運動平臺的設備穩定時間即可縮短，減振器剛性提升。




If higher level of repeatability is required, the precision leveling valve with repeatability of 0.05mm can be equipped with the vibration isolation system to shorten the settling time and ensure the stability of the platform. Standard leveling valve with repeatability of 1mm is also available.

THS1 pneumatic isolators incorporating the built-in oil damper can shorten the settling time of the equipment with linear stage, and increase the stiffness of the platform.

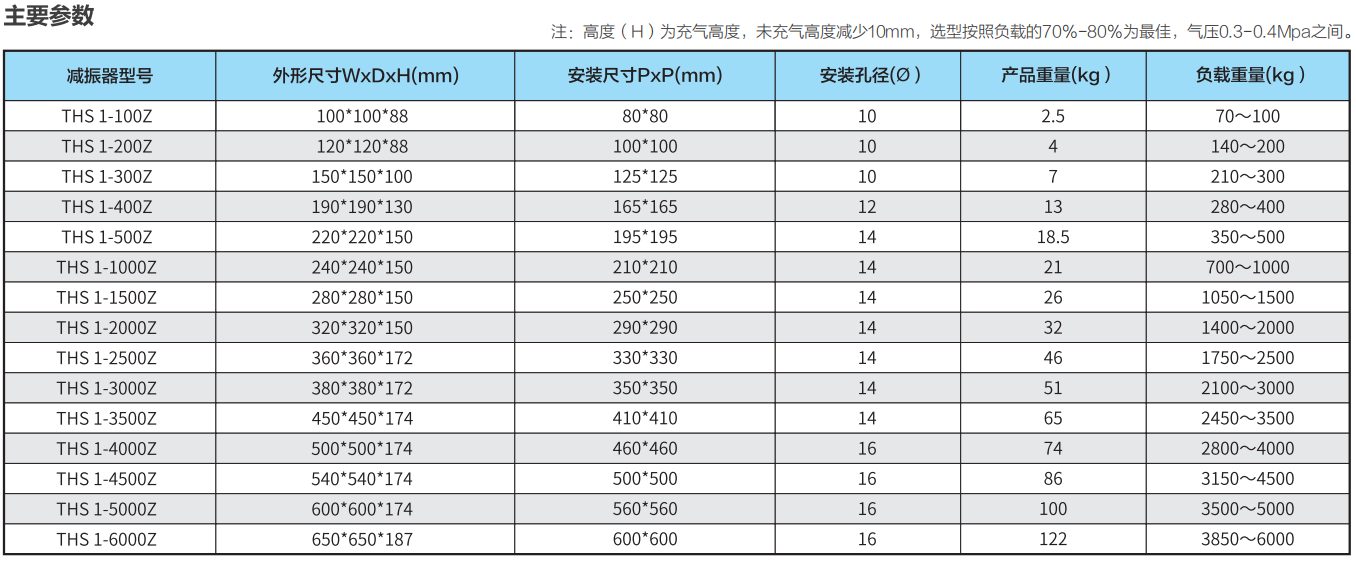

產品結構說明：

減振方式：氣動減振

固有頻率：垂直/水平=2.8-3.5Hz

10Hz減振率：70-90%

自動調整水平：是

調整水平重復性：

1、標準調整精度±1.0mm

2、高精度調整精度±0.05mm

產品用途：

面板設備、光學設備、檢測設備、半導體設備、醫療設備、航天軍工設備、精密運動平臺等。

Product Application

Panel equipment, Optical equipment, Testing equipment, Semi-conductor equipment,Medical Aerospace and military industry, Precision motion platform etc.

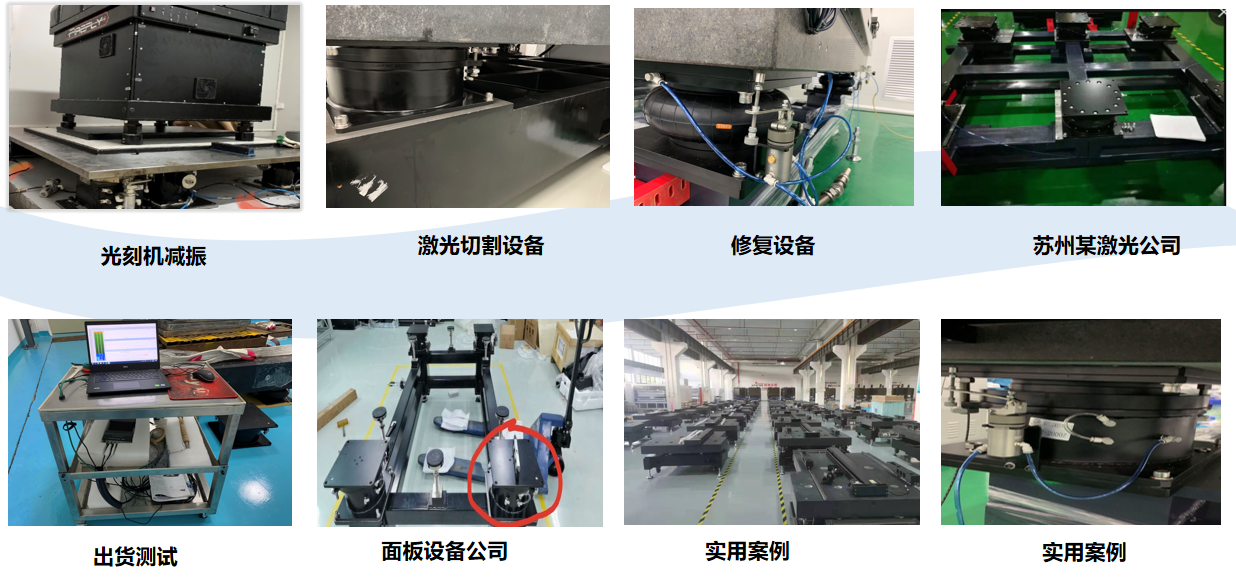

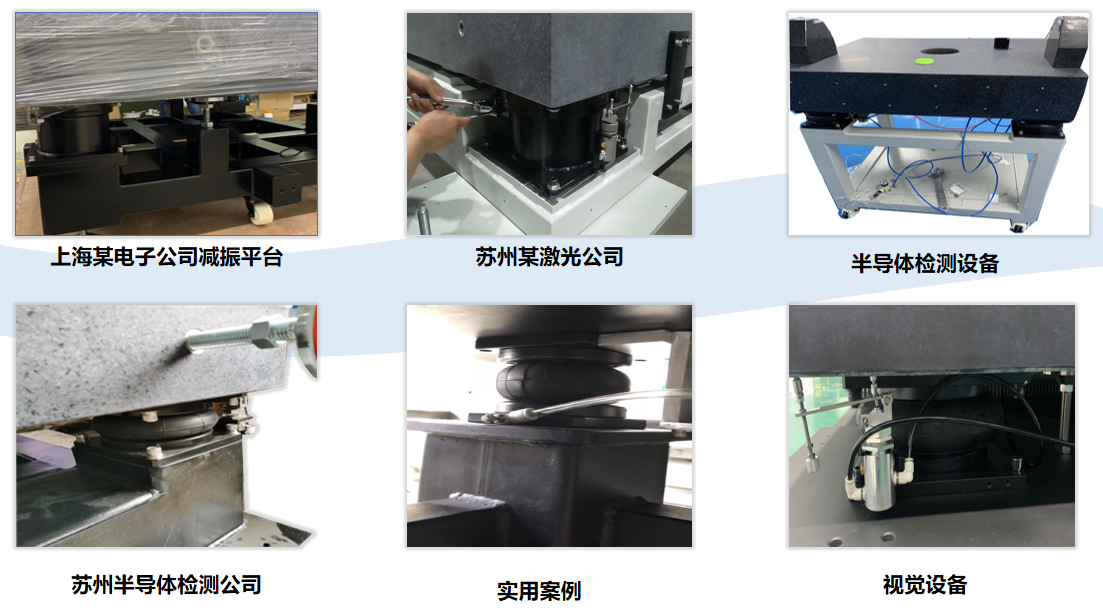

應用案例
